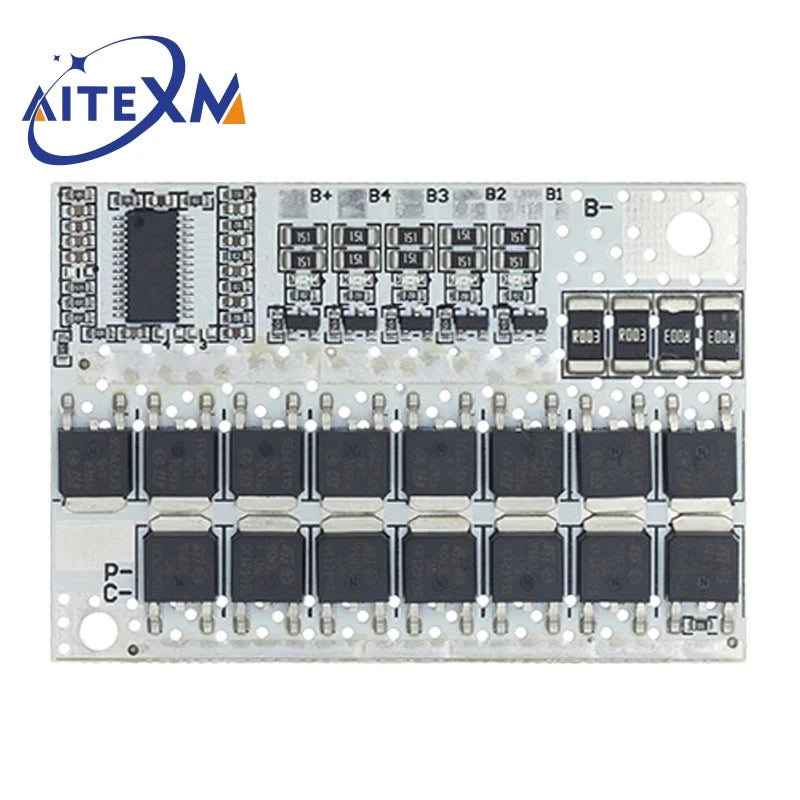

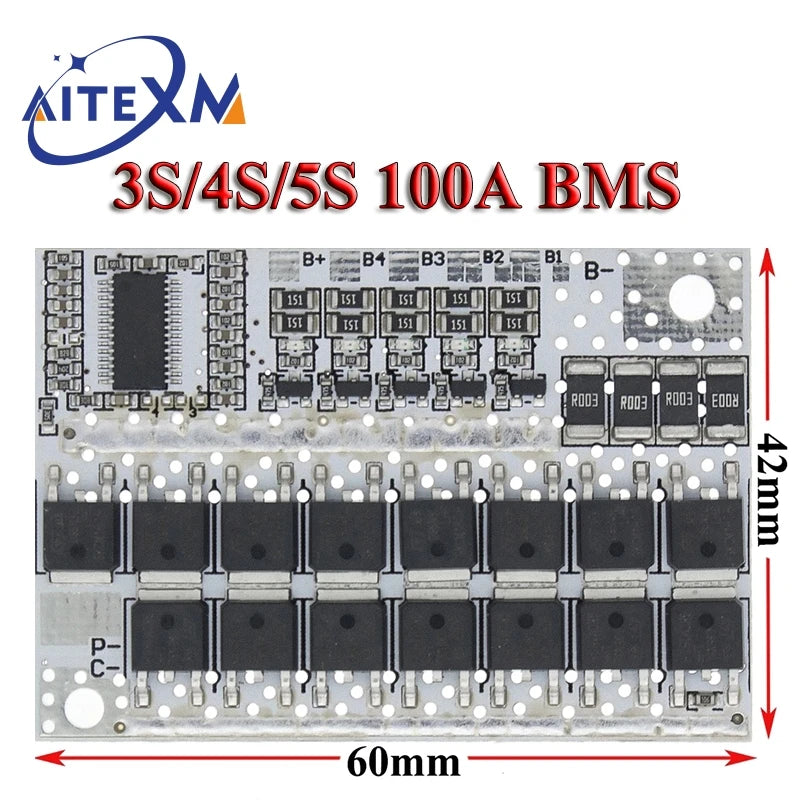

This multi-purpose Battery Management System (BMS) offers reliable protection for 3S, 4S, or 5S lithium-ion battery packs. Compatible with 18650 and similar 3.7V cells, the module features overcharge, over-discharge, overcurrent, short circuit, and temperature protection. Also includes active cell balancing for improved battery health.
Key Features:

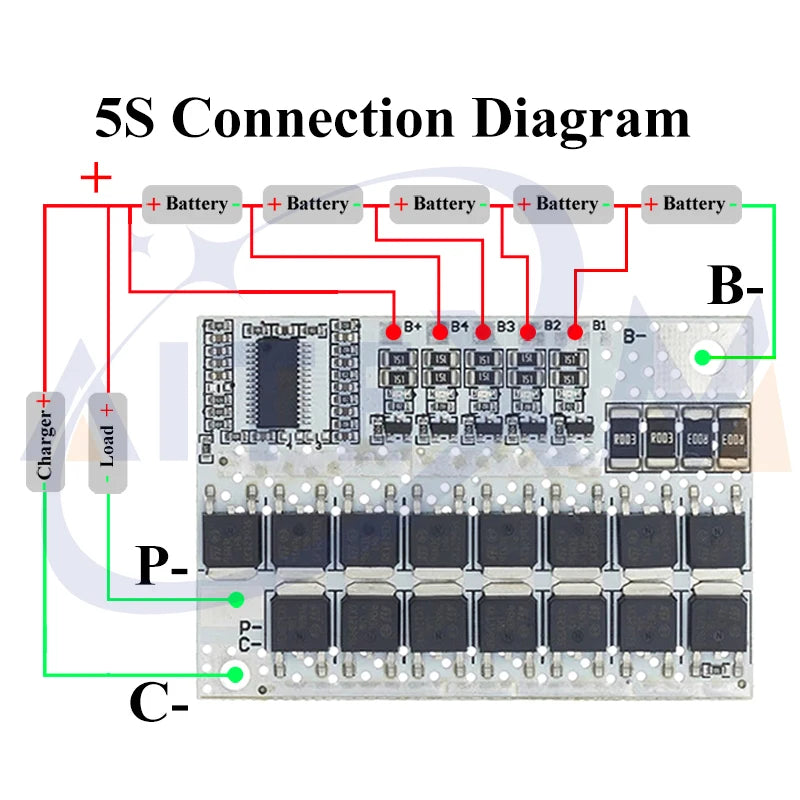

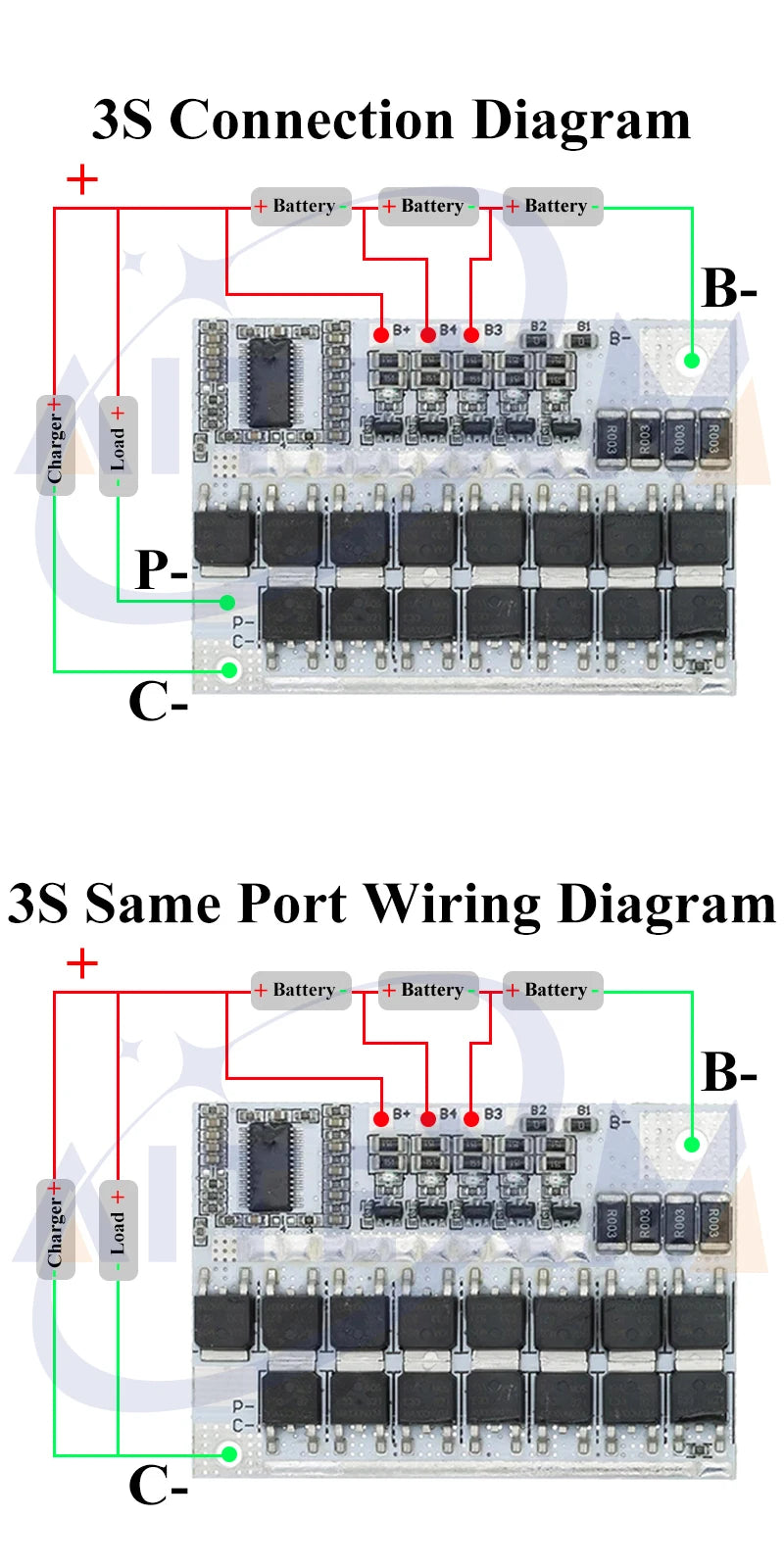

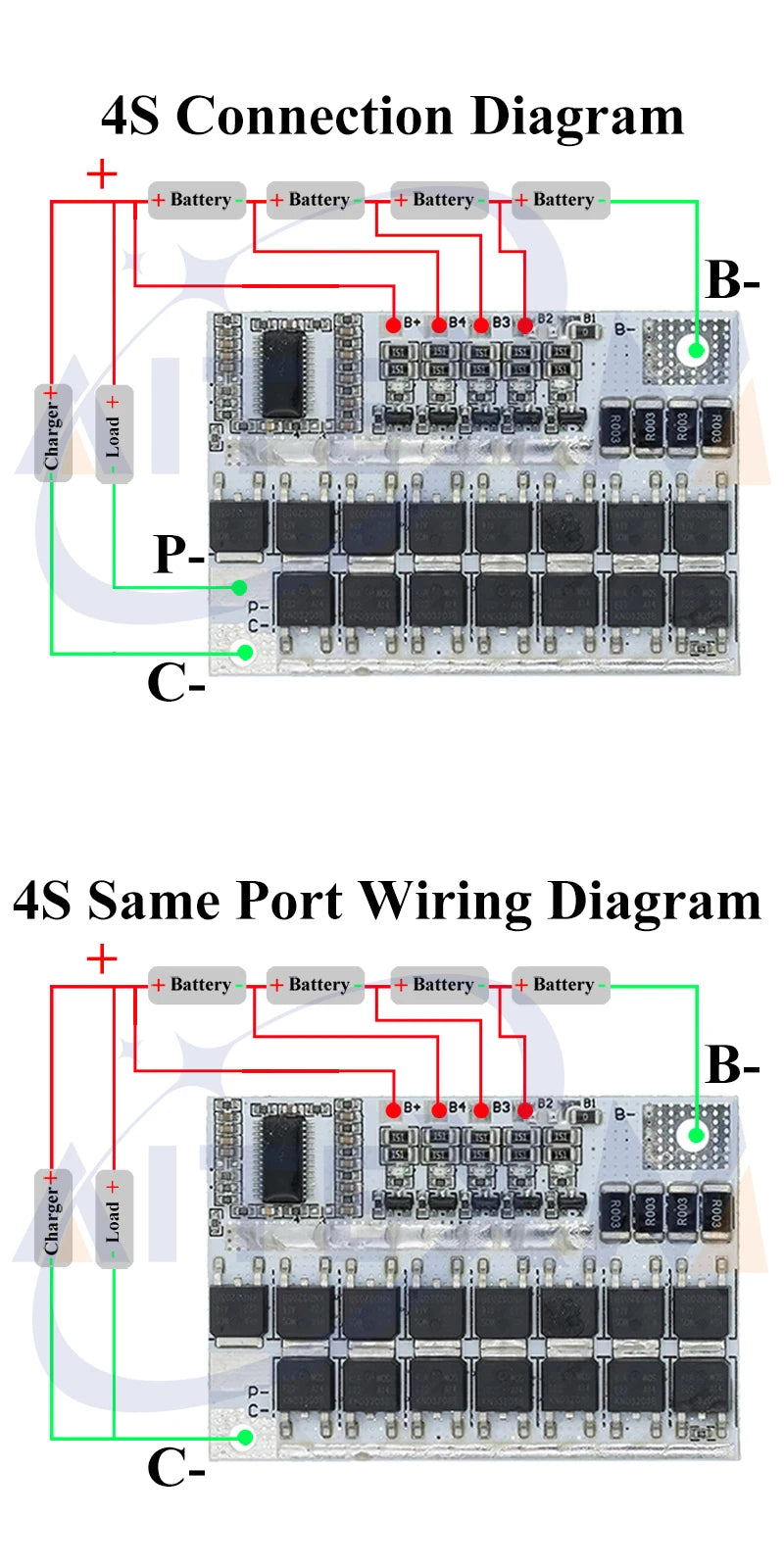

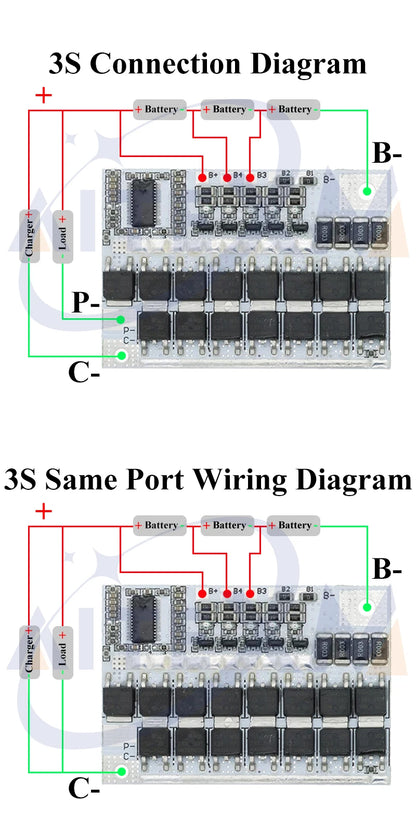

Selectable Configuration: Supports 3S, 4S, or 5S lithium battery packs (3.7V per cell)
Overcharge Protection: 4.21–4.29V per cell
Over-discharge Protection: 2.72–2.88V per cell
Overcurrent Protection: Up to 100A
Charging Current: Up to 60A

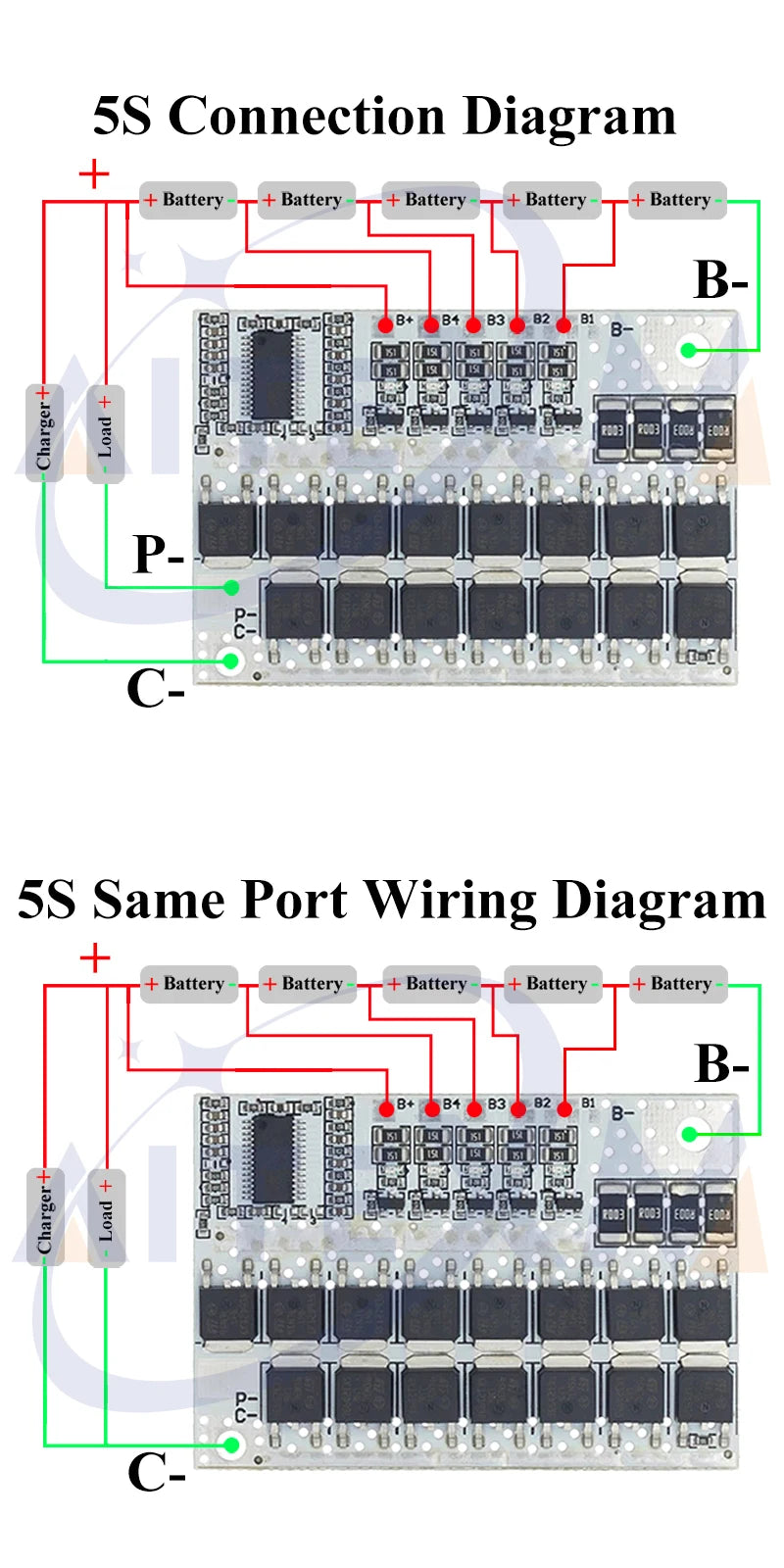

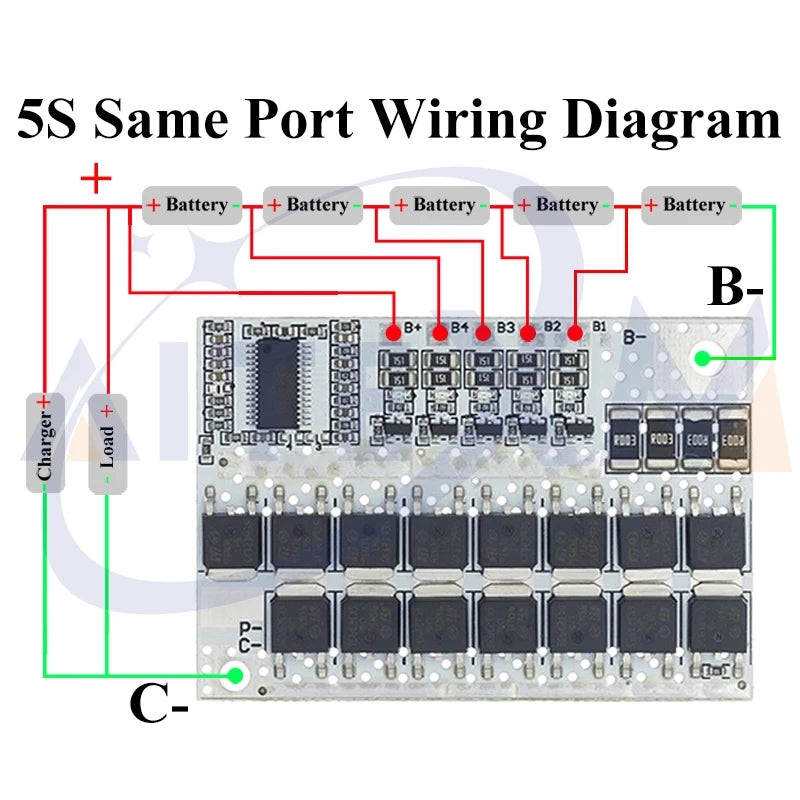

Discharge Current (Same Port): Up to 60A
Discharge Current (Separate Port): Up to 80A
Balance Function: Included – 60mA current balancing

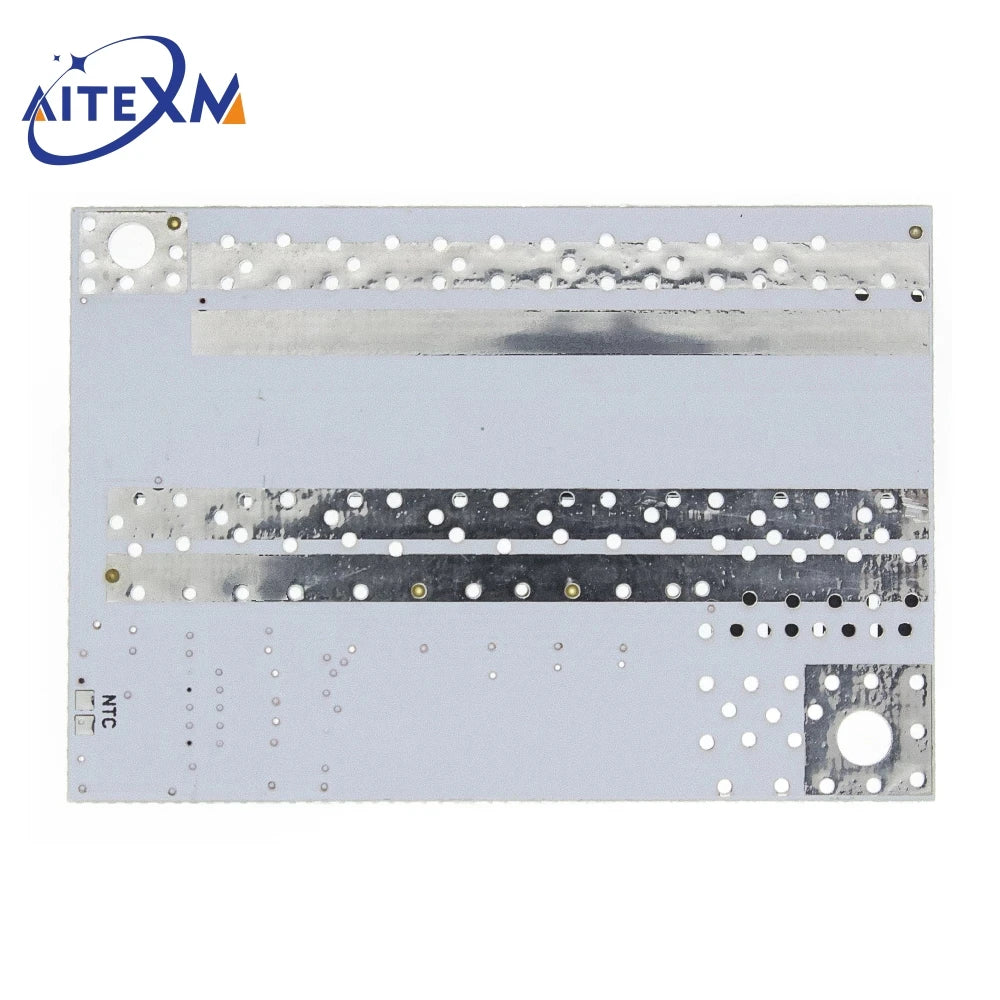

Temperature Monitoring: Yes
Short Circuit Protection: Yes, with fast recovery
Application: Suitable for e-bikes, DIY battery packs, solar storage, power tools
