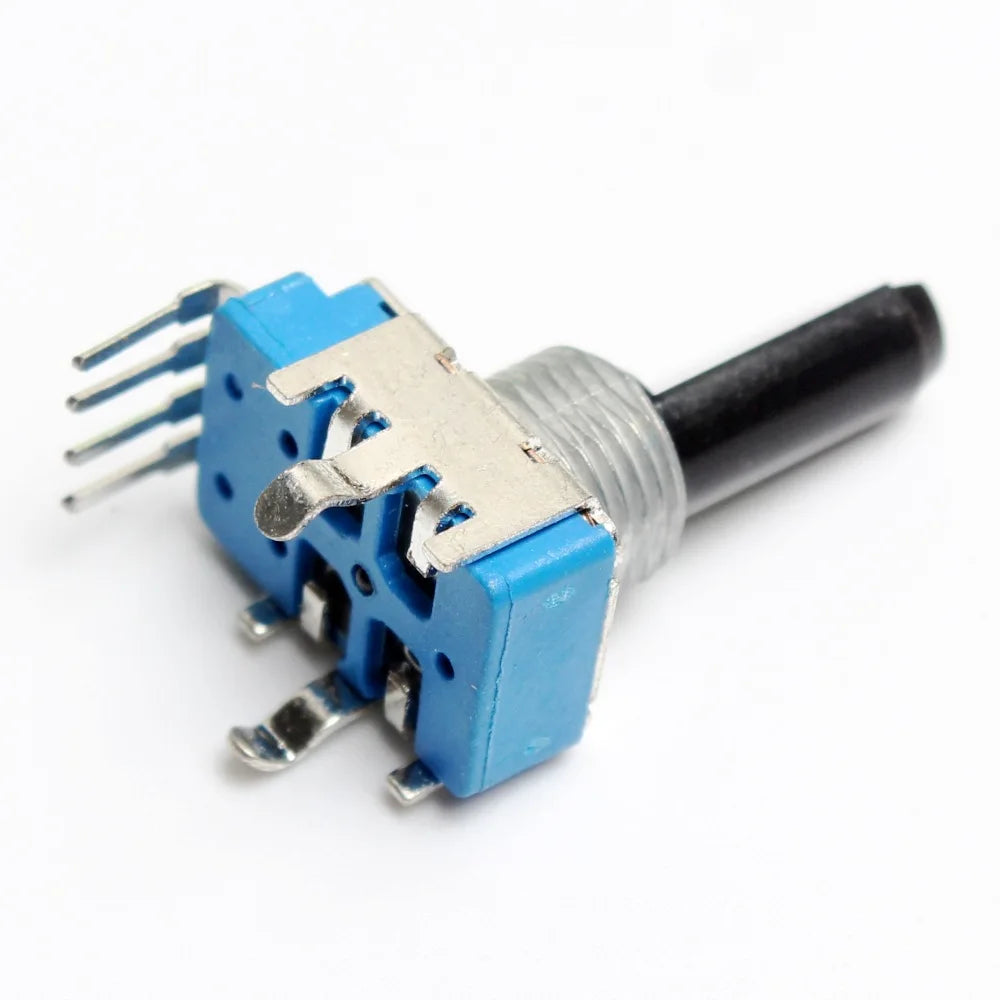

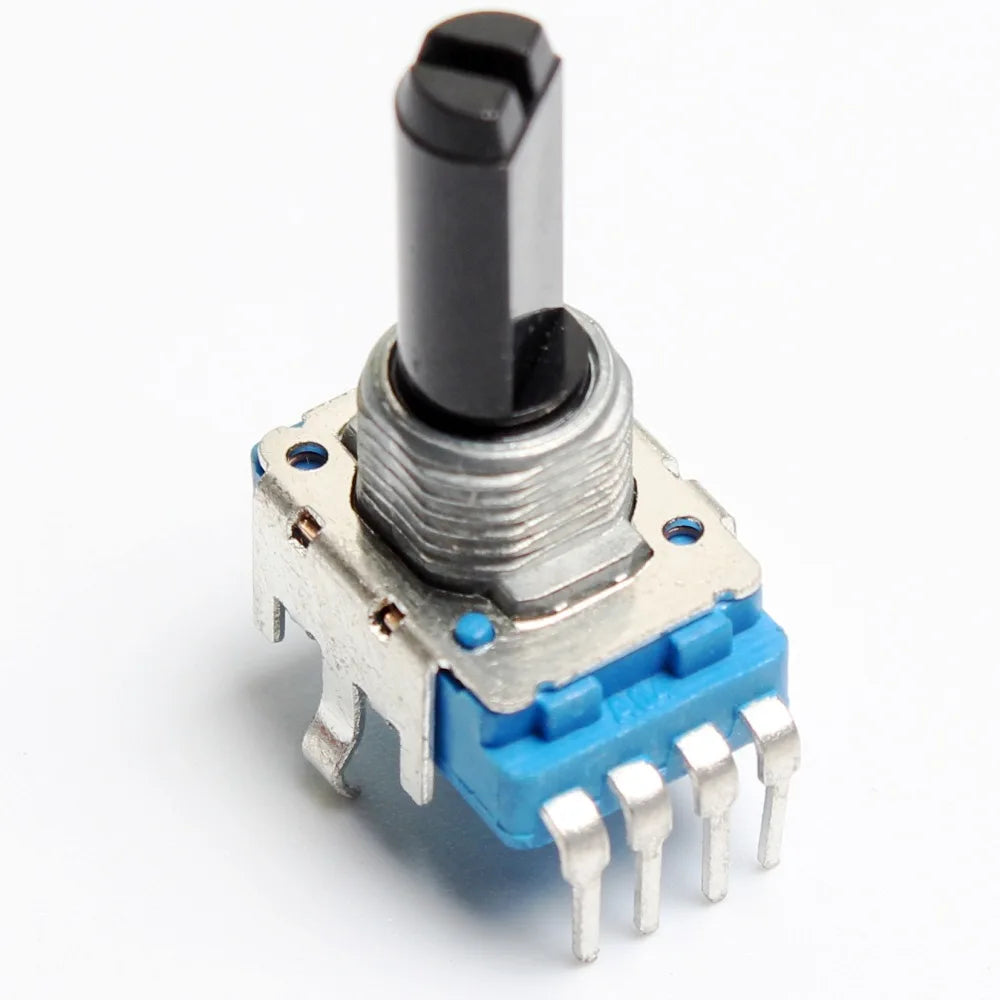

A high-quality 10K rotary potentiometer designed for precise adjustment in electronic and audio control circuits. With a compact 4-pin layout and D-shape shaft, this component offers reliable performance and smooth rotation, making it ideal for volume control and other tuning applications.

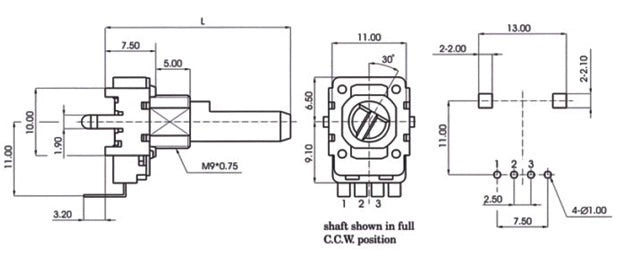

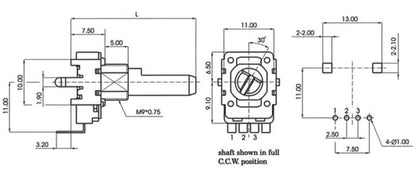

Features: • Type: Single linear (Type B) • Adjustment Style: Top adjustment • Terminals: 4-pin • Shaft Type: D-shape • Shaft Length: 20mm • Thread Diameter: 7mm • Base Size: 16 x 12mm • Mounting Height: 5mm • Resistance: 10K Ohm ±20% • Rated Power: 0.05W • Technology: Carbon film • Condition: New • Weight: Approx. 5g • Material: Metal and internal electronic components • Package Contents: 1 x Rotary Potentiometer
